| Sr. No. | Option | Image |
|---|---|---|

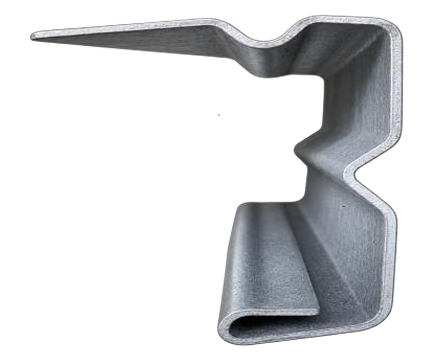

| 1 | Flange |
|

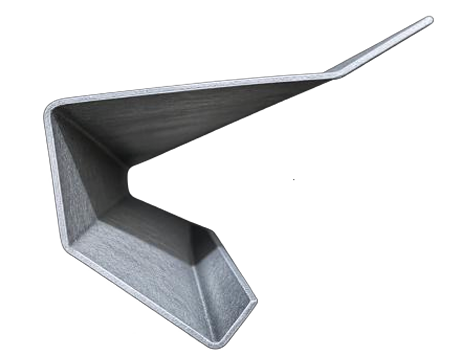

| 2 | Cleat |
|
| Machine Type | Multifunction TDF Flange Forming Machine |
| Capacity (Sheet Thickness) | 0.5 mm to 1.00 mm |
| Working Speed | 10 to 15 meter/minutes |
| Roll Station | 11 forming station |
| Motor Power | 3HP (2.2kW), 415V, 50Hz, 1440RPM. |
| Roll Material | High-grade heat-treated alloy steel. |
| Machine Dimension & Weight | Approx. 2000mm x 600mm x 1200mm; Net weight 550 kg |
